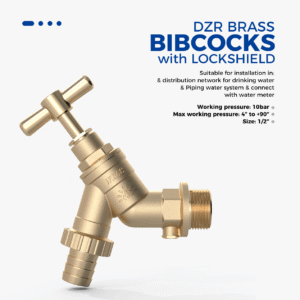

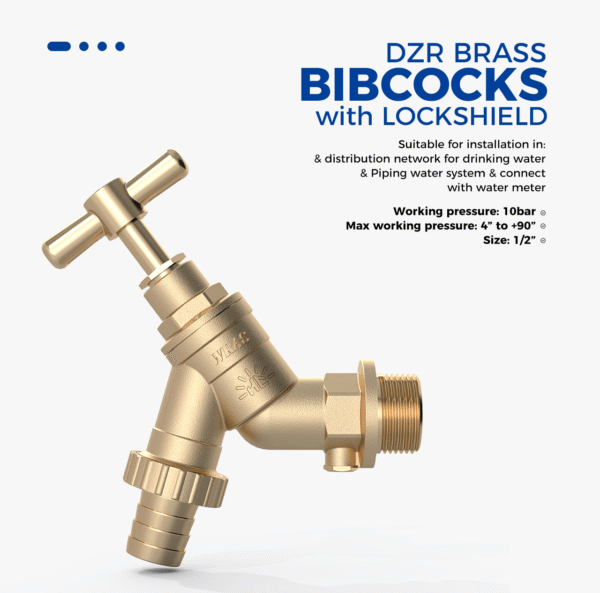

Brass Bibcock with Check Valve

SKU: HC-20302T Category:

The Hose Union Bib Tap with Double Check Valve is designed for outdoor and utility applications, including garden hoses, irrigation, and external water points espescially for cold water systems. Its built-in double check valve prevents backflow, ensuring water safety and compliance with regulations.
Size and Shape: Available in 1/2″ and 3/4″ sizes, this bib tap is made from durable brass for strength, corrosion resistance, and long service life. Its robust build makes it suitable for domestic and light commercial use.
Threads / Connections: The tap includes a threaded outlet for hose connection and standard threaded inlets for secure installation. An ergonomic handle allows smooth operation for water flow control.
Temperature and Pressure Ranges: Operating between 5°C and 90°C, it suits hot and cold supplies. With a PN16 rating, it ensures reliable function under typical outdoor conditions.
Certification: WRAS approved, verifying compliance with strict water safety and backflow standards.

Contact Us

Product Overview

Please refer to Datasheet for full technical information

Size
Size: 1/2'',3/4
Pressure Rating
Pressure rating: PN10
Material
Material: Brass
End Connections
End Connections: Compression Fittings
Test Pressure / Temperature
Test Pressure / Temperature: 5°C ~ 90°C

Download Product

Find all the essential documents and files you need in one place
Technical Drawing
Technical Drawing Design documents
DataSheet Manual
DataSheet Manual Complete Product Datasheet
Certifications
Certifications Compliance Documents
